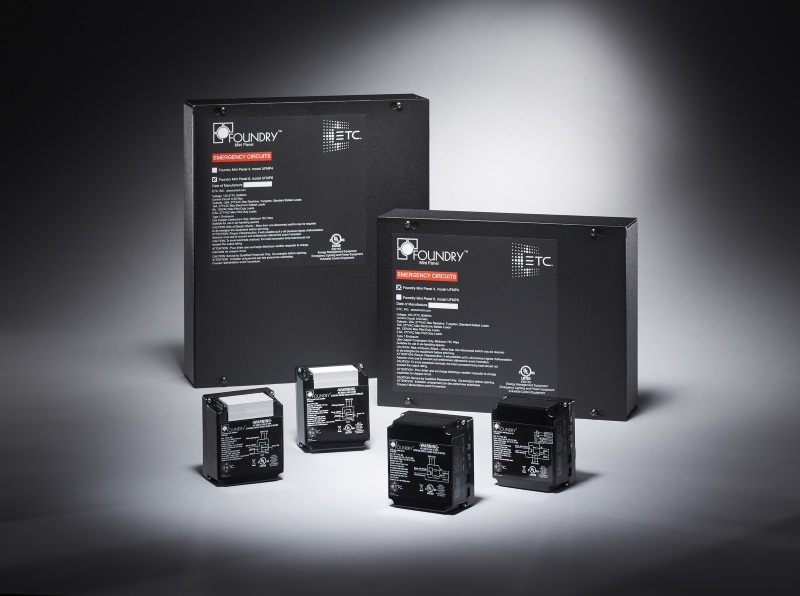

ETC recently introduced a new member of the Unison family: Unison Foundry™. Foundry power products are a line of DMX-controlled, distributed power control products that includes Mini Panels, Relay Controllers, 0-10V Controllers, and Phase-adaptive Dimmers. Foundry products make ideal partners for Unison Paradigm®, Unison Mosaic® and Echo Control Systems that utilized DMX. These combinations help users create complete lighting and plug-load control packages that provide energy saving features and meet stringent energy codes.
The Foundry Mini Panel is a discrete feed panel available in two versions: four or eight circuits. Each Mini Panel can be wired with a discrete power input for each circuit, or a single input may be shared across multiple circuits. With support for both 120V and 277V circuits simultaneously, as well as normal and emergency circuits, Foundry Mini Panels offer extreme flexibility. Fully isolated 0-10V dimming is also standard for each output, meaning Foundry Mini Panels offer outstanding versatility in a compact, robust package.
Foundry Relay Controllers, 0-10V Controllers, and Phase-adaptive Dimmers allow precise placement of power control. They are simple to install using a ½-inch conduit knockout and are plenum rated for installation almost anywhere. Foundry Relay Controllers are fully rated for 20 amps making them well-suited to both lighting and plug-load applications. The 0-10V Controllers are fully isolated, providing the best compatibility, even when used with non-isolated 0-10V drivers. The Foundry Phase-Adaptive Dimmers provide smooth reverse- or forward-phase dimming at 120V or 277V for lighting loads up to 600 Watts.
